LLSDRPCServer Class Reference

Basic implementation of a structure data rpc server. More...

#include <llsdrpcserver.h>

Inheritance diagram for LLSDRPCServer:

[legend]

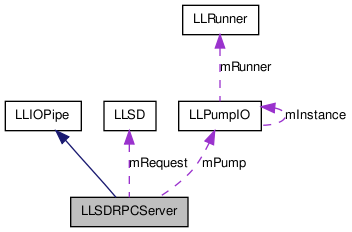

Collaboration diagram for LLSDRPCServer:

[legend]

List of all members.

Public Types
enum
Public Member Functions
void	clearLock ()
	unlock a service that as ESDRPCS_DEFERRED
	LLSDRPCServer ()
Static Public Member Functions
static void	buildFault (const LLChannelDescriptors &channels, LLBufferArray *data, S32 code, const std::string &msg)
	Call this method to return an rpc fault.
static void	buildResponse (const LLChannelDescriptors &channels, LLBufferArray *data, const LLSD &response)
	Call this method to build an rpc response.
Protected Types
enum	EState
	Enumeration to track the state of the rpc server instance.
Protected Member Functions
virtual ESDRPCSStatus	callbackMethod (const std::string &method, const LLSD &params, const LLChannelDescriptors &channels, LLBufferArray *data)
	This method is called when a pump callback is processed.
virtual ESDRPCSStatus	callMethod (const std::string &method, const LLSD &params, const LLChannelDescriptors &channels, LLBufferArray *data)
	This method is called when an http post comes in.
virtual ESDRPCSStatus	deferredResponse (const LLChannelDescriptors &channels, LLBufferArray *data)
	Called after a deferred service is unlocked.


virtual EStatus	process_impl (const LLChannelDescriptors &channels, buffer_ptr_t &buffer, bool &eos, LLSD &context, LLPumpIO *pump)
	Process the data in buffer.

Detailed Description

Basic implementation of a structure data rpc server.

The rpc server is also designed to appropriately straddle the pump process() and callback() to specify which thread you want to work on when handling a method call. The mMethods methods are called from process(), while the mCallbackMethods are called when a pump is in a callback() cycle.

Member Enumeration Documentation

anonymous enum

enumeration for generic fault codes

Constructor & Destructor Documentation

LLSDRPCServer::LLSDRPCServer ( )

LLSDRPCServer

Member Function Documentation

void LLSDRPCServer::buildFault	(	const LLChannelDescriptors &	channels,
		LLBufferArray *	data,
		S32	code,
		const std::string &	msg
	)			`[static]`

Call this method to return an rpc fault.

Parameters:

	channel	The channel for output on the data buffer
	data	buffer which will recieve the final output
	code	The fault code
	msg	The fault message

void LLSDRPCServer::buildResponse	(	const LLChannelDescriptors &	channels,
		LLBufferArray *	data,
		const LLSD &	response
	)			`[static]`

Call this method to build an rpc response.

Parameters:

	channel	The channel for output on the data buffer
	data	buffer which will recieve the final output
	response	The return value from the method call

ESDRPCSStatus LLSDRPCServer::callbackMethod	(	const std::string &	method,
		const LLSD &	params,
		const LLChannelDescriptors &	channels,
		LLBufferArray *	data
	)			`[protected, virtual]`

This method is called when a pump callback is processed.

The default behavior is to look at the method name, look up the method in the callback method table, and call it. If the method is not found, this function will build a fault response. You can implement your own version of this function if you want to hard wire some behavior or optimize things a bit.

Parameters:

	method	The method name being called
	params	The parameters
	channel	The channel for output on the data buffer
	data	The http data

Returns:: Returns the status of the method call, done/deferred/etc

Here is the call graph for this function:

ESDRPCSStatus LLSDRPCServer::callMethod	(	const std::string &	method,
		const LLSD &	params,
		const LLChannelDescriptors &	channels,
		LLBufferArray *	data
	)			`[protected, virtual]`

This method is called when an http post comes in.

The default behavior is to look at the method name, look up the method in the method table, and call it. If the method is not found, this function will build a fault response. You can implement your own version of this function if you want to hard wire some behavior or optimize things a bit.

Parameters:

	method	The method name being called
	params	The parameters
	channel	The channel for output on the data buffer
	data	The http data

Returns:: Returns the status of the method call, done/deferred/etc

Here is the call graph for this function:

ESDRPCSStatus LLSDRPCServer::deferredResponse	(	const LLChannelDescriptors &	channels,
		LLBufferArray *	data
	)			`[protected, virtual]`

Called after a deferred service is unlocked.

If a method returns ESDRPCS_DEFERRED, then the service chain will be locked and not processed until some other system calls clearLock() on the service instance again. At that point, once the pump starts processing the chain again, this method will be called so the service can output the final result into the buffers.

The documentation for this class was generated from the following files:

/home/doug/src/oss/slitechat/trunk/LLChatLib/llmessage/llsdrpcserver.h
/home/doug/src/oss/slitechat/trunk/LLChatLib/llmessage/llsdrpcserver.cpp
